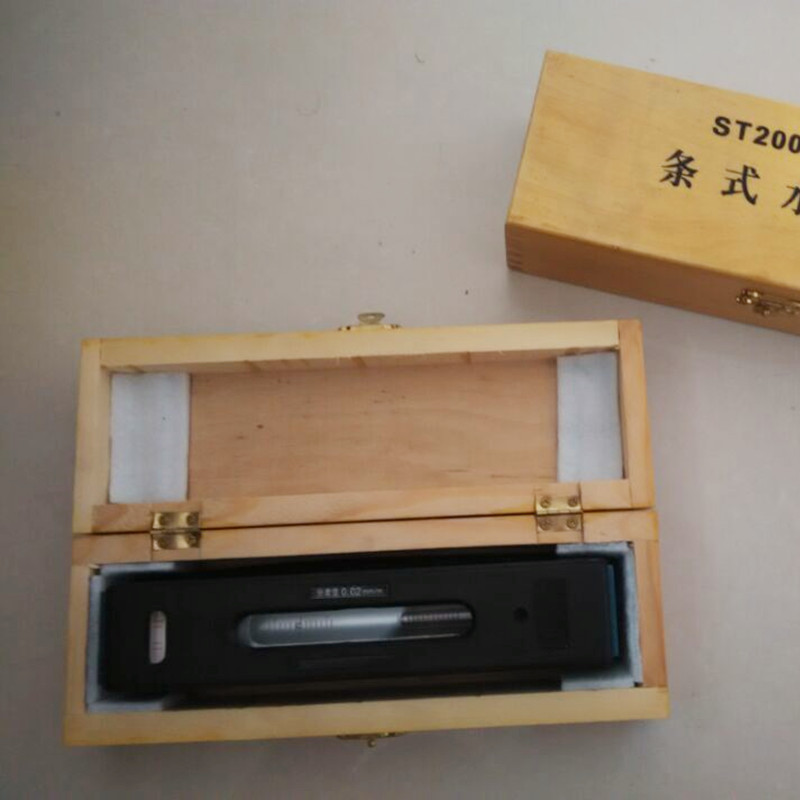

Bar Matsayi

• - Daidaitacce babban vial 0.0002 "/ 10"
• - V-Grooved tushe.
• - Tare da kayan gwajin giciye.
• - Robust jefa jikin mutum.
• - Idan aka kwatanta da matakan babban matakin yau da kullun, wannan matakin an tsara kuma wanda aka samar a cikin wani yanayi mai sauƙi.
•
• Abubuwan samfuri da aikace-aikacen Bar na Bar: Tsammani don Amfani da matakin mashaya:
• Kar a tsabtace shi da matakin mashaya, ya kamata a tsabtace ma’aunin yanayin a hankali da kuma goge bushe don bincika don bincika lahani kamar sucratches, tsatsa, da kuma suna da ƙonewa.
• 2.Ka auna tare da matakin mashaya, bincika idan matsayin sifili yayi daidai. Idan ba daidai ba, ya kamata a daidaita matakin daidaitacce, kuma ya kamata a gyara matakin da aka daidaita.
• 3.Waudewa tare da matakin mashaya, ya kamata a guji tasirin zafin jiki. Ruwan ruwa a cikin matakin yana da tasiri mai tasiri akan canje-canje na zafi. Sabili da haka, da hankali ya kamata a biya ga rinjayar zafi na hannu, hasken rana kai tsaye, da mummunan numfashi a matakin.
• 4. A cikin amfani da matakin mashaya, ya kamata a yi karatun a matsayin matakin matakin tsaye don rage tasirin tasirin akidar.
•

• Samfurin samfurin


• Matsayin matakin Gabataccen matakin Goldimar Bayanin MM: Halittu: 0.02mm / m.

Menene matakin mashaya? Bambancin bambance-bambance daga matakan tsarin

​
Mataki na mashaya shine karamin aiki, kayan aiki na layi da aka tsara don auna kai tsaye, jeri, da kuma son kai tsaye (misali, bututu, bututun ruwa) yana buƙatar dubawa. A sace-jita, matakan mashaya mu fasalta lalata jikin mutum jiki tare da tushe mai kyau, da kuma daidaitaccen wuri a kan zagaye don gano dabara mai zurfi (asarancinsu). Amma ta yaya ya bambanta da matakin firam? Bari mu rushe rarrabewa:​

1. Tsarin & Tsarin tsari​

Mataki na Bar: Linar, ƙirar-glis tare da tsagi na V-dusa tare da vialslind ɗin (sikila don vialslind ɗin ɗaya ko biyu ko biyu. Haske mai sauƙi da ɗaukakawa, cikakke ne ga m sarari ko akan-da-har zuwa matakan.​

Mataki na firikwen (misali, matakin firam ɗin firam, rectangular, firam, firam, baya, baya, saman, ƙasa), ƙasa), ƙasa), ƙasa), ƙasa), ƙasa a tsaye akan filayen lebur. Bulkier amma mafi yawan m don hadaddun, binciken da yawa.​

2. Mayar da hankali​

Mataki na Bar: Bangeresizes a cikin Silinindrical jeri (misali, duba madaidaiciyar jagororin kayan aikin injin, bututun bututun bututu) da kuma jirgin sama mara aure. V-Groove yana tabbatar da ingantaccen saduwa da shafuka zagaye, kawar da slippage yayin ma’auni.​

Mataki na firikwensin: Excelles a cikin classarar kwance-fuska (a kwance, a tsaye, farfajiya, farfajiya) akan manyan filayen lebur, ko allunan gine-gine, ko allunan gina jiki. Gefuna hudu suna ba da maki na gaba don kusurwa kusurwa da kuma daidaita ayyukan.

​
3. Maidaici & Yanayi na Aikace-aikace​

Kayan aikin biyu suna ba da daidaitaccen daidaito (0.02mm / m daidaitaccen a cikin stora), amma ƙarfinsu sun yi ƙarya a cikin lokuta daban-daban:​

Yi amfani da matakin mashaya lokacin aiki tare da abubuwan haɗin cylindricals, kunkuntar hanyoyin, ko a cikin sarari a cikin sarari inda karamin kayan aiki ne mai mahimmanci.​
Fita don matakin firam (musamman takamaiman matakin firam na) lokacin da aka auna angles na sama, ko kuma buƙatar ƙuruciya na tsaye, ko buƙatar ƙarin ƙuruciya na tsaye, ko kuma buƙatar saiti na tsaye na lokaci-lokaci.​

4. Gwaninta na Storaen a cikin duka rukuni​

A sace-jita, mu matakan injiniyan soja don dogaro da kai-baƙin ƙarfe suna tsayayya da lalata. Matakan namu, gami da madaidaicin madaidaici jerin matakan matakan, fasalin jirgin saman aluminium-saiti na daidaitaccen tsarin masarauta da kuma daidaitattun abubuwa masu yawa.​

Ko kuna buƙatar ƙimar matakin mashaya ko kuma abubuwan da ke haifar da kayan aikin masana’antu, kayan aikin aji na Storaen suna isar da daidaito da ƙarfin ayyukanku na buƙata. Bincika kewayonmu yau don nemo mafita na auna don aikace-aikacen ku.

Babban matakin mashaya: 0.02mm / m daidaito bayanai

A sace-jita, jerin matakan barorinmu sun fanshi daidaituwar masana’antu tare da manyan masana’antu 0.02mm / m daidaito-interiyoyin da za su iya aiwatar da nasarar aikin. Wannan ƙayyadadden bayanan yana nufin kayan aikinmu yana gano wani kawai 0.02mm wajen gama da mita 1 na tsawon, masana’antu, da aikace-aikace da aikace-aikace da aikace-aikace.​

1. Kwarewar kumfa mara kyau​

Zuciyar madaidaicin matakin barcin mu ita ce ta daɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗaɗɗen kumfa mai kyau, an gina shi da ruwa mai ɗorewa da kuma ruwa mai tsallakewa don rage kurakuran fadada. Kowane vial ya shiga cikin tsari na 3-mataki, tabbatar da kumfa daidai a cibiyar lokacin da farfajiya ta kwance daidai ko a tsaye. Wannan yana kawar da tsammanin, samar da sarari, maimaitawa har ma da yanayin canzawa.​

2. Daidai-machine​

Matsayi na barorinmu yana fasalta groa mai siffa v-mai siffa zuwa rabawa ga rijiyoyin da keɓaɓɓe kamar hanyoyin cylindrical, bututu, ko jagororin dogo. A cikin kusancin tsagi na tsagi da kuma madubi-gama farfajiya (Ra ≤ 0.8μm) Cire sigari da daidaitawa don daidaitawa na zagaye akan wuraren zagaye, inda daidaito ba sasantawa bane.

​
3. GASKIYA DON CIKIN SAUKI​

Housed a cikin wani mai zafi-da za a bi jikin mutum, matakin mu ya tsayar da fadada da na inji, rike 0.02mm / m daidaitaccen yanayin zafi. Mai ƙarfi ne mai ƙarfi da tsararren kayan maye daga masana’antu, yayin da anti-corrosive enamel na kare mai, coowal, da danshi na dogon lokaci a cikin mazauna na-balaga.​

4. Aikace-aikace inda daidaitaccen al’amura​

Daga Dakatar da Jagororin Kayan aikin CNC don tabbatar da madaidaiciyar isar da mai karuwa ko shigarwar bututun mai, babban matakin barcin mu ya gabatar da dogaro mai aminci. Injiniyoyi da fasaha amince da su 0.02mm / m rating don:​

Saitin kayan aiki na injin​
Aerospace Hukumar​
Gyaran kayan aiki na nauyi: Elit Hydraulic Silinda Silinder don aiki mai santsi​

5. Dokar Storaen ta tabbata​

Kowane matakin mashaya ya bar masana’antarmu ta takardar shaidar daidaitawa ta ganowa, tabbatar da yarda da iso 17025 ƙa’idodi. Muna lura da kowane kayan aiki zuwa duba mai inganci na maki 12, ciki har da gwajin fallness, da kuma ma’anar hawan lafiya, don garantin cewa rikon ruwa na 0.02mm / m / masaki / m / masaki / m / m ƙayyadaddun yana riƙe gaskiya a duk faɗin rayuwarsa.​

Lokacin da aikinku yana buƙatar ma’auni wanda zaku iya tsayayya da mutuntarku a, zaɓi daidai matakin-inda ake yin ƙa’idodi, amma alkawarin daidaitawa ba tare da sulhu ba.

Aikace-aikacen Mataki na Bar: Aunawa da Silanda Kayan Cylindrical & V-Grooves

A wajen daidaita ayyukan masana’antu, matakan mashaya da ke da kyau a cikin ayyukan da ya shafi saman zaren da kuma V-dimbin abubuwa inda ƙwararrun kayan aikin gabaɗaya. A sace-jita, jerin matakan barorinmu da aka kirkira don magance wadannan kalubaloli tare da daidaitattun kwastomomi da ba a zartar da su ba, da aka fi so kayan aiki, da kuma v-tsagi kayan aiki.

1

Fassarar Matsayi na Bar-da tushe mai tushe yana ƙirƙirar amintaccen, mai daidaitaccen dubawa tare da shimfidar wurare, kamar:

Hanyoyin kwantar da kayan aiki: Lokacin da aka daidaita CNC ta shafa CNC ta Spindle, matakin sandar Storae yana ba da ƙarancin gudu-ta hanyar gano ƙananan ƙwayoyin cuta (as) tare da 0.0 lowm A 120 ° Groove’s 120 kusurwa-ƙasa-ƙasa farfajiya (Ra ≤ 0.8μm) cikakke daidai zuwa siliki da kurakurai kurakurai.

Shigarwa na bututun ciki: A cikin tsarin pipping na masana’antu, matakin barikinmu yana tabbatar da madaidaiciyar ɓangaren bututu yayin taro, yana hana kuskure da zai iya haifar da ƙwarewar ƙasa ko damuwa. Tsarinsa da wuri mai sauƙi cikin sauƙi a cikin sarari mai sauƙi, inda kayan aikin Bulkiell suka kasa kaiwa.

2. V-tsirar da kayan aiki

Tsarin halittun-gama gari a cikin groups, ma’auni, da tsarin layin dogo – yana buƙatar madaidaicin kusurwa da ƙyallen. Matsakaicin santin na Storaen anan:

Gwaji V-Groove murabba’i: sanya matakin a fadin biyu yana adawa da tursasawa V-tsabon hawa) ya bayyana karkatattun abubuwa na angulular, tabbatar da kayan haɗin gwiwar da ke daidai don motsi mai laushi.
Jidiyon hanyoyin sadarwa na V-Tufafi: A cikin layin masana’antu ta atomatik, matakin mu yana tabbatar da abin da ya faru a kan karusai da kuma kula da daidaito na robotic ko kuma kayan aiki.

3. Ka’idodin Aiki

A masana’antu inda aka auna masu haƙuri a microns:

Maɓallin motoci: A lokacin shigarwa na Powerra, kayan aikinmu yana tabbatar da cewa an daidaita tsarin Curshshaft ɗin a cikin ƙayyadaddun bayanai, yana hana batutuwan aiwatar da tsada a ƙasa.

4

Matakan mashaya suna hada mahimman fa’idodi guda uku don waɗannan aikace-aikacen:

Rugged jefa jirgin ruwa mai ƙarfi: Rike tasirin tasirin da zafin jiki a cikin matsanancin bita, riƙe daidaituwa fiye da shekaru masu yawa.
Entical-Stant kumfa vials: Bayar da karatun da ba a sani ba, ana karanta karatuttukan ƙaramin yanayi da 30% idan aka kwatanta da matakan da aka samu.
An gano Calibration: Kowane kayan aiki ya zo tare da rahoton ISO 17025, yana ba da tabbacin 8.02mm / M daidaitaccen daidaito na kasa da mahimmanci.

Ko kuna daidaita tsarin tsayayyen tsari ko sarrafa shi mai rikitarwa, matakin mashaya na Storaen ya gabatar da daidaitaccen aiki da karkara da ake buƙata don kiyaye kayan aikin cylindrical da v-tsagi kayan aiki a cikin haƙuri. Dogara kayan aiki da aka tsara don kalubale na musamman na ma’aunin kewaye, saboda a masana’antu, ƙaramin curve na iya yin babban bambanci.
